Produktdetails:
|
| Stromspannung: | 3,0 V | Typ: | Lithium-Primärbatterie |
|---|---|---|---|
| Name: | Ultradünne Zelle | Material: | LiMnO2 |
| Proben: | Verfügbar | Erstausrüster: | Begrüßt |
| Markieren: | Ultradünne Lithium-Mangandioxid-Batterie,5700 mAh Lithium-Mangandioxid-Batterie,3 V Ultradünne LiMnO2-Batterie |
||

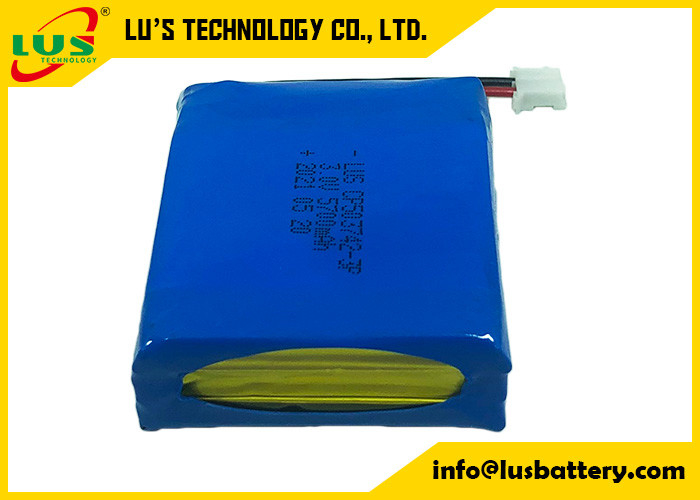

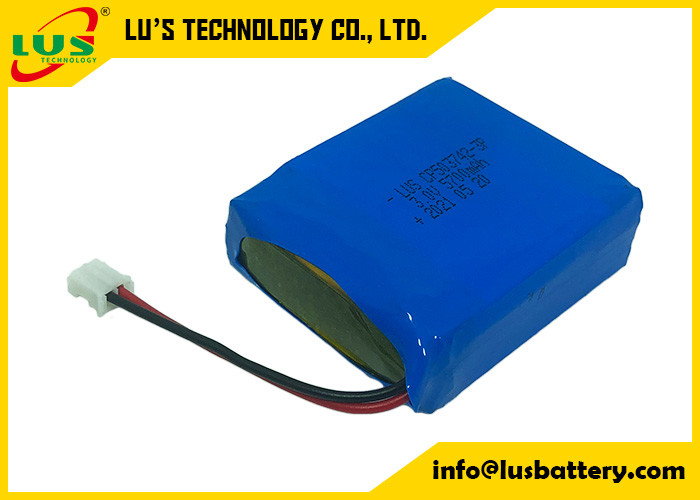

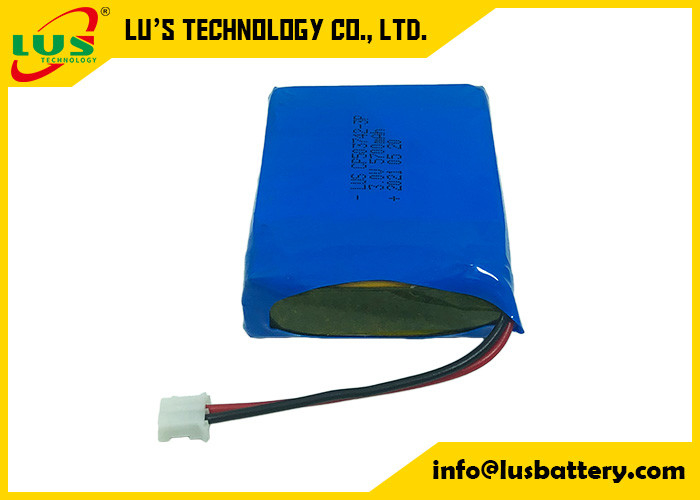

Lithium-Mangandioxid-LiMnO2-Batterie CP503742-3P 5700 mAh 3 V CR26500-Lithium-Ersatzbatterie
| Name | Ultradünne Batterien |
| Modell | CP503742 |
| Nennspannung | 3,0 V |
| Nominale Kapazität | 1900 mAh / Einzelzelle ;3P Akkupack 5700mAh |
| Entladeschlussspannung | 2,0 V |
| Betriebstemperatur | -40℃~ +70℃ |
| Lagertemperatur | -20 ℃~+40 ℃ |
| Haltbarkeit | 10 Jahre |
| Zellengewicht | Ungefähr: 45 g |
| Selbstentladungsrate | 2 Jahre |
| Assemblage-Dimension | Max. 15 x 37,5 x 42,5 mm |
Hauptmerkmale:
a.Hohe und stabile Arbeitsspannung
b.Breiter Betriebstemperaturbereich
c.Längere Lagerfähigkeit und höhere Zuverlässigkeit
d.Hohe Sicherheit und Schadstofffreiheit
Anwendungsfeld:
RFID-BATTERIE / Ausweisbatterie / Zahlungssystembatterie etc
LiSOCL2 Energieart und Leistungsart:
ER10250, ER10280, ER10450, ER13150, ER13170, ER14250, ER14335, ER14505, ER17335, ER17505, ER18505, ER20505, ER26500, ER34615, ER341245, ER9V und mehr ...
LiMnO2 Energieart und Leistungsart:
CR10250, CR10450, CR14335, CR14505, CR17285, CR17335, CR17450, CR17505, CR10450, CR18505, CR20505, CR26500, CR26600, CR34615, CR123A, CR2, CR9V...
Softpack LimnO2 Batterietyp:
CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V
LU's Battery ist ein erfahrener Anbieter von Batterien, der auf die Herstellung von Lithium-Batterien spezialisiert ist.
Inklusive LiSOCL2-Akku, LiMnO2-Akku, ultradünnem Akku und kundenspezifischen Akkus.
Wir begrüßen OEM- und ODM-Bestellungen. Danke.
Werkstatt:
| Modellgröße | Nennspannung | Nominale Kapazität | Maximaler Dauerentladestrom | Maximaler Impulsentladestrom | Abmessungen | ||
| T(mm) | W (mm) | Hmm) | |||||
| CP042345 | 3V | 35 mAh | 2mA | 4mA | 0,45 | 23±0,5 | 45±0,5 |
| CP042529 | 3V | 22 mAh | 2mA | 4mA | 0,45 | 25 ± 0,5 | 29±0,5 |
| CP042722 | 3V | 15 mAh | 1mA | 2mA | 0,45 | 27±0,5 | 22±0,5 |
| CP042922 | 3V | 15 mAh | 1mA | 2mA | 0,41 | 29 | 23 |
| CP044040 | 3V | 50 mAh | 5mA | 10mA | 0,45 | 40 | 40 ± 0,5 |
| CP044560 | 3V | 100 mAh | 10mA | 20mA | 0,45 | 45.5 | 60 |
| CP052039 | 3V | 25 mAh | 2mA | 4mA | 0,5 | 20 | 39 |
| CP052722 | 3V | 22 mAh | 1mA | 2mA | 0,5 | 27 | 22 |
| CP053050 | 3V | 80 mAh | 15mA | 30mA | 0,5 | 30 | 50 |
| CP054248 | 3V | 100 mAh | 20mA | 40mA | 0,5 | 48,5 ± 0,5 | 48,5 ± 0,5 |
| CP064348 | 3V | 200 mAh | 20mA | 50mA | 0,6 | 48,5 ± 0,5 | 48,5 ± 0,5 |
| CP073545 | 3V | 160 mAh | 10mA | 20mA | 0,7 | 35 | 45 |
| CP082922 | 3V | 50 mAh | 20mA | 80mA | 0,8 | 29 | 22 |
| CP084248 | 3V | 320 mAh | 20mA | 50mA | 0,8 | 48,5 ± 0,5 | 48,5 ± 0,5 |
| CP102015 | 3V | 30 mAh | 2mA | 5mA | 1 | 20 ± 0,5 | 15 ± 0,5 |
| CP104248 | 3V | 420 mAh | 100mA | 200mA | 1.05 | 49 | 49 |
| CP105050 | 3V | 420 mAh | 100mA | 200mA | 1.05 | 50 | 50 |
| CP105075 | 3V | 450 mAh | 200mA | 300mA | 1.05 | 45.2 | 75 |
| CP105256 | 3V | 500 mAh | 30mA | 50mA | 1.05 | 52 | 56 |
| CP124444 | 3V | 420 mAh | 75mA | 150mA | 1.2 | 44 | 44 |
| CP142828 | 3V | 160 mAh | 25mA | 50mA | 1.4 | 28 ± 1,0 | 28 ± 1,0 |
| CP142828H | 3V | 140 mAh | 50mA | 100mA | 1.4 | 28 ± 1,0 | 28 ± 1,0 |
| CP151220 | 3V | 35 mAh | 5mA | 10mA | 1.5 | 12 ± 0,5 | 20 ± 0,5 |
| CP153030 | 3V | 170 mAh | 40mA | 80mA | 1.5 | 30 | 30 |
| CP153030H | 3V | 140 mAh | 50mA | 100mA | 1.5 | 30 | 30 |
| CP154580 | 3V | 1000 mAh | 150mA | 300mA | 1.5 | 45±0,5 | 80 |
| CP151015 | 3V | 18 mAh | 0,5mA | 1mA | 1.5 | 10 ± 0,5 | 15 ± 0,5 |
| CP161220H | 3V | 20 mAh | 16mA | 30mA | 1.6 | 12 ± 0,5 | 20 ± 0,5 |
| CP161230H | 3V | 45 mAh | 16mA | 30mA | 1.6 | 12 ± 0,5 | 30 ± 0,5 |
| CP162235 | 3V | 160 mAh | 30mA | 50mA | 1.6 | 22 | 35 |
| CP164548 | 3V | 700 mAh | 50mA | 100mA | 1.6 | 45.5 | 48.5 |
| CP171234 | 3V | 140 mAh | 20mA | 50mA | 3.6 | 35 | 13.5 |
| CP181234 | 3V | 125 mAh | 25mA | 50mA | 1.8 | 12 ± 0,5 | 34 |
| CP183123 | 3V | 150 mAh | 45mA | 75mA | 1.8 | ||
| CP201335 | 3V | 120 mAh | 25mA | 50mA | 2 | 10 | 35 |
| CP201535 | 3V | 120 mAh | 30mA | 60mA | 1.9 | 14 | 35 |
| CP202128 | 3V | 130 mAh | 20mA | 40mA | 2 | 21±0,5 | 28±0,5 |
| CP202540 | 3V | 350 mAh | 75mA | 150mA | 2 | 25 ± 0,5 | 40 ± 0,5 |
| CP202721 | 3V | 140 mAh | 40mA | 80mA | 2 | 27±0,5 | 21±0,5 |
| CP203030 | 3V | 230 mAh | 50mA | 100mA | 2 | 30 | 30 |
| CP203034 | 3V | 275 mAh | 50mA | 100mA | 2 | 30 | 34 |
| CP203040 | 3V | 210 mAh/380 mAh | 100mA | 200mA | 2 | 30 ± 0,5 | 40 ± 0,5 |
| CP203242 | 3V | 375 mAh | 75mA | 150mA | 2.1 | 32 | 42 |
| CP204517 | 3V | 210 mAh | 20mA | 50mA | 2 | 45±0,5 | 17±0,5 |
| CP204547 | 3V | 750 mAh | 50mA | 100mA | 2 | 45±0,5 | 47±0,5 |
| CP222920 | 3V | 150 mAh | 45mA | 75mA | 2.2 | ||
| CP224248 | 3V | 850 mAh | 100mA | 200mA | 2.2 | 45±0,5 | 48,5 ± 0,5 |
| CP225050 | 3V | 1000 mAh | 200mA | 400mA | 2.2 | 50 | 50 |
| CP225080 | 3V | 1700 mAh | 200mA | 400mA | 2.2 | 50 | 80 |
| CP242030 | 3V | 230 mAh | 50mA | 100mA | 2.4 | 20 ± 0,5 | 30 ± 0,5 |
| CP255050 | 3V | 1200 mAh | 150mA | 300mA | 2.5 | 50 | 50 |
| CP251525 | 3V | 150 mAh | 40mA | 80mA | 2.5 | 15 ± 0,5 | 25 ± 0,5 |
| CP251626 | 3V | 150 mAh | 60mA | 150mA | 2.5 | 16±0,5 | 26,5 ± 0,5 |
| CP252525 | 3V | 250 mAh | 30mA | 60mA | 2.5 | 25.5 | 25.5 |
| CP255047 | 3V | 1250 mAh | 150mA | 300mA | 2.5 | 50 | 47,5 ± 0,5 |
| CP255080 | 3V | 2050 mAh | 300mA | 600mA | 2.5 | 50 | 80 |
| CP301415 | 3V | 85 mAh | 30mA | 60mA | 3 | 14±0,5 | 15 ± 0,5 |
| CP301919-2S | 6V | 150 mAh | 50mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP302525 | 3V | 350 mAh | 75mA | 150mA | 3 | 25 | 25 |
| CP304580 | 3V | 2500 mAh | 200mA | 500mA | 3 | 45 | 80 |
| CP321626 | 3V | 250 mAh | 50mA | 100mA | 6.1 | 19.5 | 19.5 |
| CP334728 | 3V | 700 mAh | 100mA | 200mA | 3.5 | 47.5 | 28,0 ± 0,5 |
| CP352440 | 3V | 750 mAh | 100mA | 300mA | 3.5 | 24.5 | 41 |
| CP355050 | 3V | 2000 mAh | 500mA | 1000mA | 3.5 | 50 | 50 |
| CP402020 | 3V | 275 mAh | 50mA | 100mA | 4 | 20 ± 0,5 | 20 ± 0,5 |
| CP402424H | 3V | 400 mAh | 100mA | 300mA | 4 | 24 | 24 |
| CP403030 | 3V | 550 mAh | 75mA | 150mA | 4 | 30 | 30 |
| CP453450 | 3V | 1700 mAh | 300mA | 600mA | 4.5 | 33±0,5 | 49±0,5 |
| CP501525 | 3V | 350 mAh | 80mA | 150mA | 5 | 15 ± 0,5 | 25,5 ± 0,5 |
| CP502440 | 3V | 1200 mAh | 150mA | 300mA | 5 | 24,5 ± 0,5 | 41 |
| CP502540 | 3V | 1200 mAh | 150mA | 300mA | 5.2 | 42 | 25.5 |
| CP503436 | 3V | 1550 mAh | 200mA | 500mA | 5.2 | 34.5 | 36 |
| CP503740 | 3V | 1700 mAh | 300mA | 600mA | 5 | 37±0,5 | 40 ± 0,5 |
| CP503742 | 3V | 1700 mAh | 300mA | 600mA | 5 | 37±0,5 | 42±0,5 |
| CP505050 | 3V | 3000 mAh | 500mA | 1500mA | 5.2 | 50,5 ± 0,5 | 50,5 ± 0,5 |
| CP505050-2S | 6V | 3000 mAh | 600mA | 1800mA | |||
| CP505050-2P | 3V | 6000 mAh | 1000mA | 2000mA | 10.3 | 50.5 | 50.5 |
| CP543537 | 3V | 1500 mAh | 200mA | 400mA | 5.6 | 35.5 | 37 |
| CP601919 | 3V | 300 mAh | 100mA | 200mA | 6.1 | 19.5 | 19.5 |
| CP603450 | 3V | 2400 mAh | 500mA | 1000mA | 6.1 | 34±0,5 | 50 ± 0,5 |
| CP603956 | 3V | 3300 mAh | 800mA | 1500mA | 6.1 | 39±0,5 | 56 |
| CP604446-2S | 6V | 3000 mAh | 2000mA | 4000mA | 13 | 46 | 44 |
| CP603244 | 3V | 2000 mAh | 1000mA | 1500mA | 6.2 | 32,5 | 44.5 |
| CP702242 | 3V | 1500 mAh | 200mA | 1200mA | 7 | 22 | 42 |
| CP703028 | 3V | 1000 mAh | 200mA | 400mA | 7 | 30 | 28 |
| CP703448 | 3V | 2000 mAh | 1000mA | 1500mA | 7 | 34 | 48.5 |
| CP806468 | 3V | 8000 mAh | 2000mA | 4000mA | 7.6 | 64 | 68 |
| CP1002045 | 3V | 1800 mAh | 900mA | 1500mA | 10.2 | 20.5 | 45.5 |
| CP1002440 | 3V | 2400 mAh | 400mA | 800mA | 10.2 | 25.5 | 40.5 |
| CP1002550 | 3V | 2700 mAh | 500mA | 1000mA | 10.2 | 25.5 | 50.5 |
| CP4542100 | 3V | 4750 mAh | 800mA | 1500mA | 4.5 | 42.5 | 100 |
| CP7839109 | 3V | 9000 mAh | 2000mA | 3000mA | 7.9 | 39±0,5 | 109 |
| CP11568125 | 3V | 28000 mAh | 4000mA | 6000mA | 12 | 68.5 | 126 |
| CP9V | 9V | 1200 mAh | 150mA | 300mA | |||
