Produktdetails:
|
Art: | wieder aufladbare LiPo Batterien 3.7V | Teilnummer: | LP903450 |
---|---|---|---|
Kapazität: | 1500mah | Schutz: | PCM |
Anschlüsse: | Stifte, Drähte, Verbindungsstück oder besonders angefertigt | Drucken: | Willkommen besonders angefertigt |
Markieren: | Polymer-wieder aufladbare Lithium-Batterie,LP903450 wieder aufladbare Lithium-Batterie,rechteckiges Lithium Ion Polymer Battery |

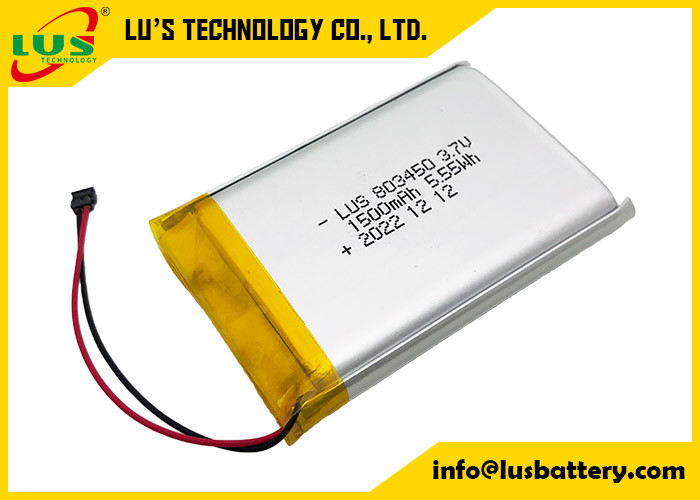

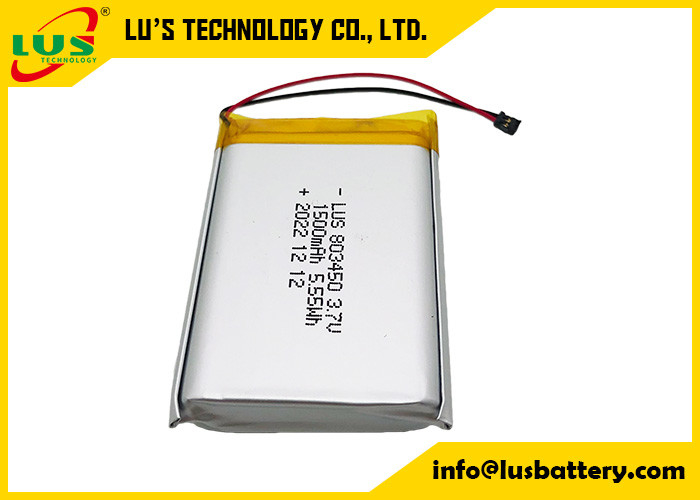

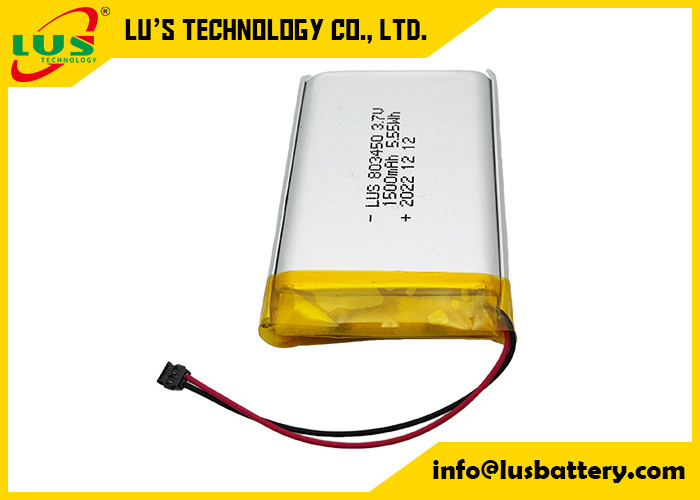

Rechteckiger wiederaufladbarer Polymer-Lithium-Akku LP903450 3,7 V 1500 mAh
Wiederaufladbarer rechteckiger Lithium-Ionen-Polymer-Akku LP903450 3,7 V 1500 mAh Akku
3,7 V rechteckiger Lithium-Polymer-Akku LP903450 1500 mAh
Akku-Typ:Lithium-Polymer-Akku
Aufbau:1S1P
Artikelnummer:LP903450
Kapazität:1500 mAh
Stromspannung:3,7V
Wat-Hou-Bewertung:5,5 Wh
Gewicht:ca.30g
Schutzschaltung (PCM):Ja
Thermistor (NTC):Hängt von Ihrem Bedarf ab
Drähte:Ja
Abmessungen:9,0 x 34 x 52 mm
LP093450 Spezifikationen der Zelle
NEIN. | Artikel | Spezifikationen |
1 |
Ladespannung
|
4,2 V |
2 |
Nennspannung
|
3,7V |
3 |
Nominale Kapazität
|
1500 mAh 1C Entladung |
4 |
Ladestrom
|
Standardladung:: Schnellladung: 1,0C |
5 |
Standard-Lademethode
|
0,5 C CC (Konstantstrom) auf 4,2 V laden, dann CV (Konstantspannung 4,2 V) laden, bis der Ladestrom auf ≤ 0,05 C abfällt
|
6 |
Ladezeit
|
Standardladung: 3,0 Stunden (Ref.)
Schnellladung: 2 Stunden (Ref.)
|
7 |
Max. Ladestrom
|
1,0 °C |
8 |
Max. Entladestrom
|
1,5 °C |
9 |
Entlade-Abschaltspannung
|
2,45 V |
10 |
Betriebstemperatur
|
Laden: -20℃ ~ 55℃
Entladen: -20℃ ~ 55℃
|
11 |
Lagertemperatur
|
-10℃~ +45℃ |
12 |
Zellgewicht
|
Ungefähr: 28,5 g
|
13 |
Zellendimension
|
Länge: Max. 50,5 mm (ohne Laschen) Breite: 34,5 mm max Dicke: 8,0 mm max |
Aussehen
Es dürfen keine Mängel wie Fehler, Risse, Rost oder Undichtigkeiten vorliegen, die sich negativ auswirken könnten
Kommerzieller Wert der Batterie.
Produktvorteile der Li-Polymer-Batterie:
1) Umweltfreundlich
2) Hohe Energiedichte
3) Geringes Gewicht
4) Geringe Selbstentladung
5) Niedriger Innenwiderstand
6) Lange Lebensdauer, bis zu 500 oder 1000 Mal aufladbar
7) Kein Memory-Effekt
8) Enthält kein Quecksilber, kein Feuer, keine Explosion, keine Leckage
9) Sehr gute und schnelle Aufladung, die Fähigkeit kann innerhalb von 10 Minuten auf 90 % aufgeladen werden.
10) Die Dicke kann angepasst werden, während Breite und Höhe gleich bleiben
Hauptanwendung:
1)MP3/MP4-Player, Bluetooth, Lautsprecher, Auto-GPS und alle möglichen Elektronikprodukte
2) Weit verbreitet in der Telekommunikation, Audio- und Videogeräten, Informationsgeräten usw.
Standardtestbedingungen:
Der Test sollte mit neuen Batterien innerhalb einer Woche nach Versand aus unserem Werk durchgeführt werden
und die Zellen dürfen vor dem Test nicht mehr als fünf Mal getestet werden.
Sofern nicht anders angegeben, müssen Tests und Messungen bei einer Temperatur von 20 ± 5 °C durchgeführt werden
und relative Luftfeuchtigkeit von 45~85 %.
Wenn festgestellt wird, dass die Testergebnisse durch solche Bedingungen nicht beeinträchtigt werden, können die Tests davon betroffen sein
durchgeführt bei einer Temperatur von 15 bis 30 °C und einer Luftfeuchtigkeit von 25 bis 85 % relativer Luftfeuchtigkeit.
Liste der beliebtesten Li-Po-Batterien:
Modell | Stromspannung | Kapazität | Modell | Stromspannung | Kapazität | Modell | Stromspannung | Kapazität | ||
022817 | 3,7V | 45 mAh | 504040 | 3,7V | 800 mAh | 756077 | 3,7V | 4800 mAh | ||
102040 | 3,7V | 750 mAh | 505050 | 3,7V | 1500 mAh | 782150 | 3,7V | 800 mAh | ||
102050 | 3,7V | 1000 mAh | 505573 | 3,7V | 2500 mAh | 801735 | 3,7V | 500 mAh | ||
102055 | 3,7V | 1100 mAh | 506090 | 3,7V | 3000 mAh | 802030 | 3,7V | 400 mAh | ||
103040 | 3,7V | 1200 mAh | 523450 | 3,7V | 1000 mAh | 802035 | 3,7V | 500 mAh | ||
103048 | 3,7V | 1400 mAh | 551525 | 3,7V | 170 mAh | 802040 | 3,7V | 600 mAh | ||
103450 | 3,7V | 1800 mAh | 551656 | 3,7V | 480 mAh | 802050 | 3,7V | 800 mAh | ||
104050 | 3,7V | 2300 mAh | 552045 | 3,7V | 450 mAh | 802248 | 3,7V | 1000 mAh | ||
104060 | 3,7V | 2800 mAh | 601235 | 3,7V | 180 mAh | 802528 | 3,7V | 480 mAh | ||
105050 | 3,7V | 3000 mAh | 601248 | 3,7V | 250 mAh | 802530 | 3,7V | 600 mAh | ||
105085 | 3,7V | 5000 mAh | 601720 | 3,7V | 150 mAh | 803035 | 3,7V | 800 mAh | ||
124040 | 3,7V | 2000 mAh | 601730 | 3,7V | 250 mAh | 803040 | 3,7V | 900 mAh | ||
126090 | 3,7V | 8000 mAh | 602030 | 3,7V | 300 mAh | 803048 | 3,7V | 1200 mAh | ||
131827 | 3,7V | 500 mAh | 602035 | 3,7V | 400 mAh | 803448 | 3,7V | 1300 mAh | ||
132682 | 7,4 V | 1500 mAh | 602040 | 3,7V | 400 mAh | 803450 | 3,7V | 1500 mAh | ||
285272 | 3,7V | 1000 mAh | 602040 | 3,7V | 450 mAh | 804050 | 3,7V | 1800 mAh | ||
301525 | 3,7V | 80 mAh | 602047 | 3,7V | 540 mAh | 804050 | 3,7V | 2000 mAh | ||
303020 | 3,7V | 80 mAh | 602530 | 3,7V | 450 mAh | 804068 | 3,7V | 2500 mAh | ||
303055 | 3,7V | 500 mAh | 602535 | 3,7V | 500 mAh | 832248 | 3,7V | 920 mAh | ||
303997 | 3,7V | 1500 mAh | 641447 | 3,7V | 400 mAh | 851768 | 3,7V | 850 mAh | ||
401120 | 3,7V | 55 mAh | 652540 | 3,7V | 650 mAh | 901744 | 3,7V | 680 mAh | ||
401042 | 3,7V | 100 mAh | 603030 | 3,7V | 500 mAh | 902030 | 3,7V | 500 mAh | ||
401235 | 3,7V | 120 mAh | 603040 | 3,7V | 680 mAh | 902035 | 3,7V | 600 mAh | ||
401430 | 3,7V | 120 mAh | 603048 | 3,7V | 900 mAh | 902248 | 3,7V | 1050 mAh | ||
402065 | 3,7V | 550 mAh | 603759 | 3,7V | 1400 mAh | 902535 | 3,7V | 800 mAh | ||
402535 | 3,7V | 300 mAh | 604050 | 3,7V | 1500 mAh | 903450 | 3,7V | 1600 mAh | ||
402780 | 3,7V | 1000 mAh | 604060 | 3,7V | 1700 mAh | 951768 | 3,7V | 1200 mAh | ||
402895 | 3,7V | 1200 mAh | 604070 | 3,7V | 2000 mAh | 955050 | 3,7V | 2800 mAh | ||
402934 | 3,7V | 350 mAh | 605060 | 3,7V | 2000 mAh | 14430 | 3,7V | 650 mAh | ||
405085 | 3,7V | 2000 mAh | 605070 | 3,7V | 2300 mAh | 18650 | 3,7V | 2600 mAh | ||
443441 | 3,7V | 650 mAh | 605080 | 3,7V | 3000 mAh | 134065 | 3,7V | 4000 mAh | ||
452536 | 3,7V | 400 mAh | 606080 | 3,7V | 5000 mAh | 103030-2P | 3,7V | 2000 mAh | ||
501318 | 3,7V | 55 mAh | 606090 | 3,7V | 4000 mAh | 162027-2P | 3,7V | 700 mAh | ||
501447 | 3,7V | 280 mAh | 634169 | 3,7V | 2000 mAh | 502025-4P | 3,7V | 800 mAh | ||
501535 | 3,7V | 200 mAh | 653040 | 3,7V | 800 mAh | 414256-2S | 7,4 V | 5500 mAh | ||
501535 | 3,7V | 220 mAh | 654060 | 3,7V | 1700 mAh | 523450-2S | 7,4 V | 1000 mAh | ||
502025 | 3,7V | 200 mAh | 654065 | 3,7V | 2000 mAh | 604040-2S | 7,4 V | 1000 mAh | ||
502030 | 3,7V | 250 mAh | 701330 | 3,7V | 200 mAh | 804262-2S | 7,4 V | 2500 mAh | ||
502035 | 3,7V | 300 mAh | 701435 | 3,7V | 300 mAh | 102050-2S | 7,4 V | 1000 mAh | ||
502065 | 3,7V | 700 mAh | 701488 | 3,7V | 850 mAh | 124060-2S | 7,4 V | 1700 mAh | ||
502248 | 3,7V | 500 mAh | 701535 | 3,7V | 350 mAh | 4030100-2S | 7,4 V | 1400 mAh | ||
502530 | 3,7V | 350 mAh | 702050 | 3,7V | 800 mAh | 603450-3S | 11,1 V | 1200 mAh | ||
502535 | 3,7V | 400 mAh | 702060 | 3,7V | 850 mAh | 803273-3S | 11,1 V | 2000 mAh | ||
502545 | 3,7V | 600 mAh | 702257 | 3,7V | 1000 mAh | 285272-5S | 18,5V | 1000 mAh | ||
502728 | 3,7V | 360 mAh | 703048 | 3,7V | 1000 mAh | 18650-30Q-2P | 3,7V | 6000 mAh | ||
503035 | 3,7V | 500 mAh | 703440 | 3,7V | 1000 mAh | 18650-2S | 7,4 V | 2000 mAh | ||
503040 | 3,7V | 600 mAh | 721944 | 3,7V | 630 mAh | 18650-2S2P | 7,4 V | 5200 mAh | ||
503048 | 3,7V | 750 mAh | 751635 | 3,7V | 380 mAh | 192560 | 3,2V | 1800 mAh | ||
503070 | 3,7V | 1400 mAh | 752035 | 3,7V | 500 mAh | 143060 | 3,2V | 1800 mAh | ||
503759 | 3,7V | 1200 mAh | 753450 | 3,7V | 1300 mAh |
